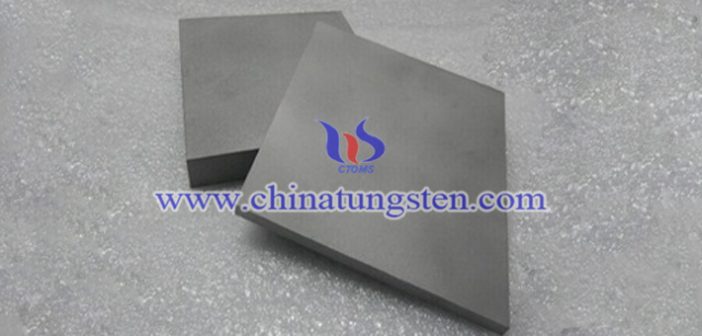

90W-7Ni-3Fe tungsten alloy plate has better machinability, very good mechanical properties, and high absorption capacity for X-rays and gamma rays. It can be applied in the radiation shielding material and radiation-protective equipment.
The properties of 90W-7Ni-3Fe tungsten alloy plate are:
Alloy Type：W 90%、Ni 7%、Cu 3%
MIL-T-21014: Class 1
SAE-AMS-T-21014: Class 1
AMS 7725 C: 7725 C
ASTM B777-87: Class 1
Density: 17.1 g/cc and 0.614 lbs/ in3
Hardness Rockwell: 25 C
Ultimate Tensile Strength Min: 120,000 ksi
Yield Strength Min (0.2% offset): 88,000 ksi
Elongation: 10 % in 1"
Proportional Elastic Limit: 52,000PSI
Modules of Elasticity: 45 x 106 PSI
Coefficient of Thermal Expansion: 4.61 X 10-6/°C (20~400°C)
Thermal Conductivity: 0.18 CGS Units
Electrical Conductivity: 10 % IACS
Magnetic Properties: Slightly Magnetic
