Tungsten oxide, as the core "secret weapon" of smart windows, is like a bright star in the field of materials science, shining with a unique light. Its chemical formula is WO?-x, which is a compound formed by the close combination of tungsten and oxygen. Its appearance presents a variety of colors, the most common of which are light yellow, yellow, orange-yellow, blue and purple, as if it was given a unique color code by nature.
From the physical properties, tungsten oxide has a moderate band gap width, about 2.4-2.8 electron volts (eV), which makes it stand out among semiconductor materials. The moderate band gap width gives tungsten oxide good electrical properties, enabling it to flexibly regulate the transmission and transition of electrons under the action of the electric field, laying a solid foundation for the electrochromic function of smart windows.
Tungsten oxide also has a large specific surface area, which means that it has a large proportion of surface atoms and many active sites, and can react chemically with a variety of substances, greatly improving its reactivity and adsorption capacity. This characteristic enables tungsten oxide to react with ions more quickly and efficiently during the electrochromic process, thereby achieving rapid color change and precise light transmittance adjustment of smart windows.
In terms of chemical properties, tungsten oxide exhibits good chemical stability, can maintain its own structure and performance stability in various complex environments, and is not easily oxidized, corroded or degraded. This enables smart windows to always maintain good performance during long-term use, without frequent replacement, reducing the cost of use and maintenance difficulty.
It is these unique physical and chemical properties that make tungsten oxide stand out among many electrochromic materials and become the preferred material in the field of smart windows. It is like a skilled artist who, under the command of the electric field, cleverly draws a series of colorful "light and shadow paintings" on the smart window, making our lives more intelligent, comfortable and beautiful.
1. The wonderful journey of electrochromism: the principle is revealed
The reason why tungsten oxide can give smart windows magical color-changing ability is that the secret behind it lies in its unique electrochromic principle. At present, the widely accepted theory is the intervalence transition theory proposed by Faughnan, which unveils the mystery of tungsten oxide electrochromism.
When the circuit of the smart window is connected, the external electric field begins to work, and a wonderful "dance" of the microscopic world is staged. Driven by the electric field, electrons and cations are injected into the lattice structure of tungsten oxide from both sides of the film at the same time, just like well-trained dancers. Electrons are first captured by tungsten (W) atoms to form a special localized state, just like electrons have found their own "exclusive nest". At the same time, metal cations M? (common ones such as H?, Li?, etc.) also quickly move to this area and combine with WO? to form a new compound-dark blue tungsten bronze compound (MxWO?).
In the tungsten bronze compound MxWO?, tungsten atoms show different valence states, which is the key to electrochromism. These tungsten atoms with different valence states are like "steps" with different energies, and electrons jump back and forth between these "steps". When electrons absorb energy and transition from a tungsten atom with a lower valence to a tungsten atom with a higher valence, or release energy and transition from a higher valence back to a lower valence, they are accompanied by the absorption or emission of light of a specific wavelength. Since light of different wavelengths corresponds to different colors, the transition of electrons between tungsten atoms of different valences ultimately leads to the change of the color of the tungsten oxide film.
2. Smart windows: a multifaceted window to open future life
At a time when science and technology are developing rapidly, smart windows are entering our lives in an unprecedented manner. It is no longer a simple device that can only transmit light and ventilate in the traditional sense, but a "life magician" that integrates many cutting-edge technologies. It can automatically adjust its performance according to environmental changes and bring people a new life experience.

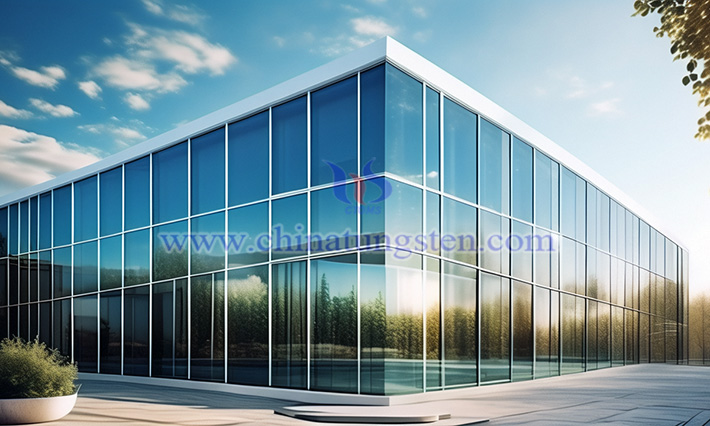

In the field of architecture, the application of smart windows is setting off an innovation in energy saving and comfort. Smart windows can automatically adjust their own light transmittance and thermal insulation performance according to changes in external light and temperature. In the hot summer, when the sun is strong, smart windows can reduce light transmittance through electrochromic, thermochromic and other technologies, blocking a large amount of solar radiation heat from entering the room, thereby reducing the energy consumption of refrigeration equipment such as air conditioners. Studies have shown that buildings with smart windows can reduce air conditioning energy consumption by 30%-50% in summer. In the cold winter, smart windows can increase light transmittance, allow more sunlight to enter the room, increase indoor temperature, and reduce heating energy consumption.
In the automotive field, smart windows also show great advantages, bringing unprecedented convenience and comfort to drivers and passengers. In terms of UV protection, many cars use special glass manufacturing processes or coating technologies, such as adding metal oxides such as tungsten oxide to the glass, which can effectively block ultraviolet rays from entering the car and protect the skin health of people in the car. Thermal insulation performance is also a highlight of smart windows. By using multi-layer glass, vacuum interlayer technology or special thermal insulation film, smart windows can greatly reduce the introduction of solar radiation heat. In the hot summer, the temperature inside the car can be significantly reduced, reducing the load on the air conditioning system, which not only improves the driving comfort, but also saves energy. For new energy vehicles, it also helps to increase the range.
In the field of aerospace, smart windows also play an indispensable and key role. Traditional aircraft windows can only adjust the light through manual sunshades, but smart windows have completely changed this situation. Smart windows have built-in electrochromic materials. When different voltages are applied, the molecular structure of the material changes, thereby changing the light transmittance of the window. During the day, passengers can dim the windows to effectively block the glare of the sun and excessive heat, reduce visual fatigue, and create a comfortable resting environment; at night or when you need to appreciate the beautiful scenery outside the window, you can adjust the windows to a transparent state and enjoy the unique view at high altitude.
